Event Specification
Magnitude |
3.4 |
| Date & Time (UTC) | 2016-02-18 17:52:00.8 |
| Date & Time (Local) | 1394/11/29 21:22:00.8 |

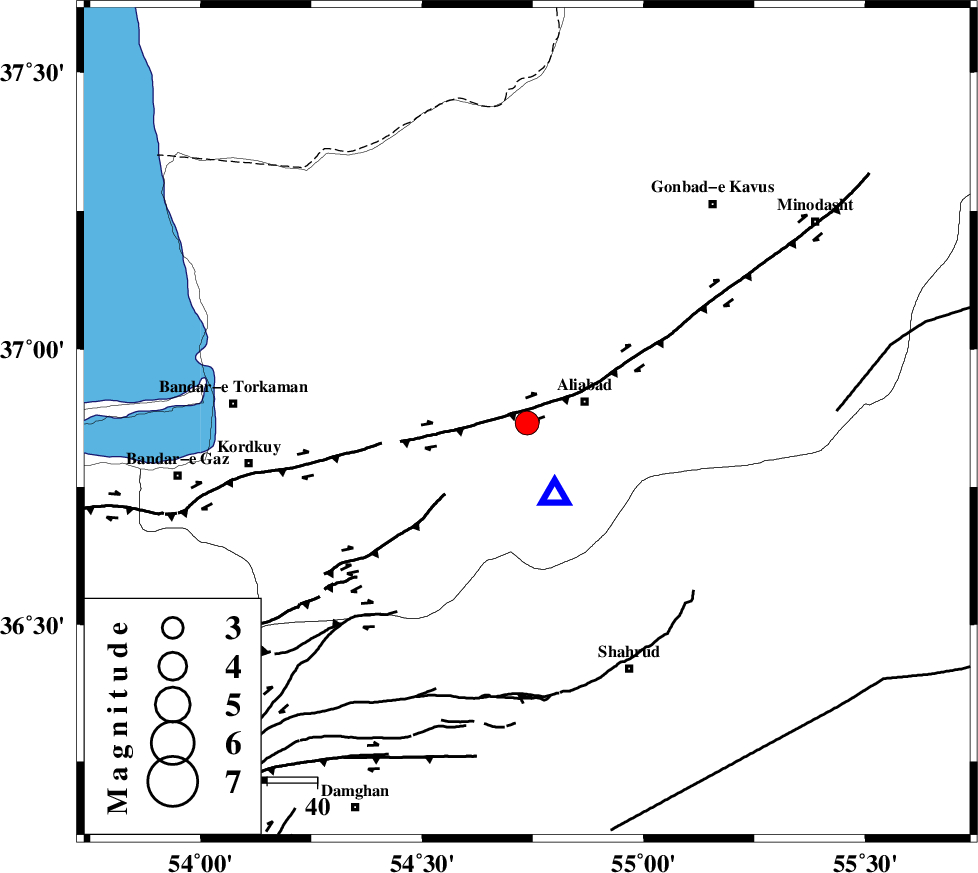

| Location | Lat:36.866 Lon: 54.737 |
| Region | Golestan Province, 12 km -West of Ali Abad |
Nearest Cities |
|
| 12 km West of Ali Abad, Golestan Province | |
| 17 km North East of Jalin olia, Golestan Province | |
| 18 km South East of Nodeh malek, Golestan Province | |
| 24 km South of Gariduji, Golestan Province | |
| 26 km South East of Qanqarmeh, Golestan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| KHAZAR_F (Length: 523 km) , Distance to epicenter: 21 km | |
| SHAVAR_F (Length: 87 km) , Distance to epicenter: 34 km | |
| N_ALBORZ_F (Length: 360 km) , Distance to epicenter: 42 km | |
| Number of Phases | 12 |
| RMS | 0.4 |
| Number of Stations | 10 |
| Error in Latitude | >3.8 km |
| Error in Longitude | 5.2 km |
| Error in Depth | 9.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 104482 | IIEES | MRVT | E | 645.8 | 0.18 | 2016-02-18 17:52:50 | 2016-02-20 08:57:00 | n |
| 104483 | IIEES | DAMV | E | 124.2 | 0.54 | 2016-02-18 17:53:21 | 2016-02-20 08:57:00 | n |
| 104484 | IIEES | DAMV | N | 135.2 | 0.65 | 2016-02-18 17:53:21 | 2016-02-20 08:57:00 | n |
| 104485 | IIEES | THKV | E | 92.4 | 0.51 | 2016-02-18 17:53:37 | 2016-02-20 08:57:00 | n |
| 104486 | IIEES | THKV | N | 81.8 | 0.63 | 2016-02-18 17:53:44 | 2016-02-20 08:57:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | MRVT | Z | Pg | E | 2016-02-18 17:52:25 | -0.17 | y | 149 | 53 | |||
| IIEES | SHRO | Z | Pg | E | 2016-02-18 17:52:25 | -0.45 | y | 149 | 129 | |||
| IIEES | SHRO | N | Sg | E | 2016-02-18 17:52:44 | 0.74 | y | 149 | 129 | |||
| IIEES | MRVT | N | Sg | E | 2016-02-18 17:52:44 | 0.47 | y | 149 | 53 | |||
| IIEES | BJRD | Z | Pn | E | 2016-02-18 17:52:39 | -0.49 | y | 254 | 68 | |||
| IIEES | DAMV | Z | Pn | E | 2016-02-18 17:52:44 | 0.44 | y | 284 | 242 | |||
| IIEES | CHTH | Z | Pn | E | 2016-02-18 17:52:51 | 0.28 | y | 341 | 253 | |||
| IIEES | THKV | Z | Pn | E | 2016-02-18 17:52:53 | 0.31 | y | 362 | 254 | |||
| IIEES | TABS | Z | Pn | E | 2016-02-18 17:52:59 | -0.42 | y | 417 | 148 | |||
| IIEES | ASAO | Z | Pn | E | 2016-02-18 17:53:09 | -0.46 | y | 498 | 240 | |||
| IIEES | SHRT | Z | Pn | E | 2016-02-18 17:53:24 | -0.29 | y | 619 | 124 | |||
| IIEES | BSRN | Z | Pn | E | 2016-02-18 17:53:32 | -0.53 | y | 677 | 142 | |||
