Event Specification
Magnitude |
2.9 |
| Date & Time (UTC) | 2016-08-15 06:55:22.1 |
| Date & Time (Local) | 1395/5/25 11:25:22.1 |

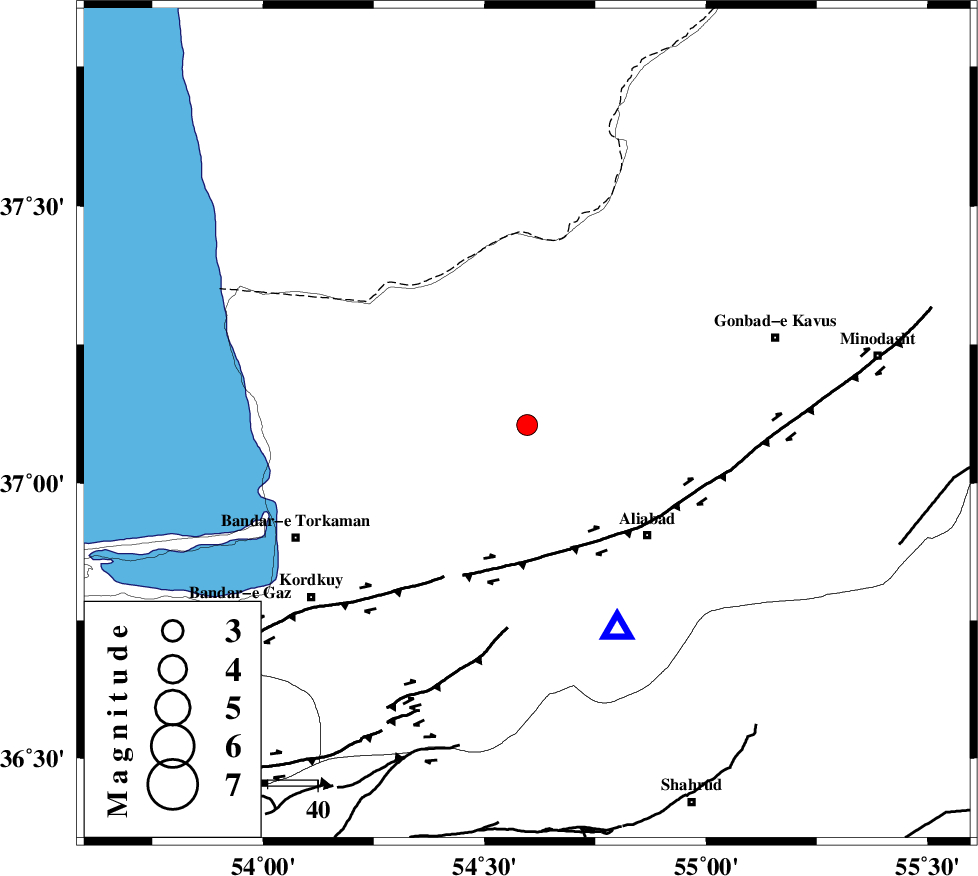

| Location | Lat:37.105 Lon: 54.596 |
| Region | Golestan Province, 16 km -East of Aq Qaleh |
Nearest Cities |
|
| 13 km North West of Gariduji, Golestan Province | |
| 13 km North of Qanqarmeh, Golestan Province | |
| 14 km North of Nodeh malek, Golestan Province | |
| 16 km North East of Aq Qaleh, Golestan Province | |
| 29 km North of Jalin olia, Golestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| KHAZAR_F (Length: 523 km) , Distance to epicenter: 29 km | |
| N_ALBORZ_F (Length: 360 km) , Distance to epicenter: 58 km | |
| SHAVAR_F (Length: 87 km) , Distance to epicenter: 62 km | |
| Number of Phases | 14 |
| RMS | 0.4 |
| Number of Stations | 11 |
| Error in Latitude | >5.6 km |
| Error in Longitude | 4.2 km |
| Error in Depth | 7.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 108555 | IIEES | MRVT | E | 167 | 0.3 | 2016-08-15 06:56:09 | 2016-08-15 07:56:00 | n |
| 108556 | IIEES | DAMV | N | 45.2 | 0.53 | 2016-08-15 06:56:47 | 2016-08-15 07:56:00 | n |
| 108557 | IIEES | DAMV | E | 48.1 | 0.4 | 2016-08-15 06:56:48 | 2016-08-15 07:56:00 | n |
| 108558 | IIEES | GHVR | N | 10.8 | 0.48 | 2016-08-15 06:57:30 | 2016-08-15 07:56:00 | n |
| 108559 | IIEES | GHVR | E | 19.5 | 0.55 | 2016-08-15 06:57:31 | 2016-08-15 07:56:00 | n |
| 108560 | IIEES | TABS | N | 8.8 | 0.69 | 2016-08-15 06:57:49 | 2016-08-15 07:56:00 | n |
| 108561 | IIEES | YZKH | E | 5.6 | 0.34 | 2016-08-15 06:57:29 | 2016-08-15 07:56:00 | n |
| 108562 | IIEES | YZKH | N | 5.9 | 0.4 | 2016-08-15 06:57:31 | 2016-08-15 07:56:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | MRVT | Z | Pg | E | 2016-08-15 06:55:45 | -0.47 | y | 146 | 65 | |||
| IIEES | MRVT | N | Sg | E | 2016-08-15 06:56:04 | 0.16 | y | 146 | 65 | |||
| IIEES | SHRO | Z | Pg | E | 2016-08-15 06:55:51 | 0.53 | y | 176 | 133 | |||
| IIEES | BJRD | Z | Pn | E | 2016-08-15 06:56:01 | -0.16 | y | 258 | 74 | |||
| IIEES | DAMV | Z | Pn | E | 2016-08-15 06:56:06 | 0.56 | y | 287 | 236 | |||
| IIEES | DAMV | N | Sg | E | 2016-08-15 06:56:42 | -0.62 | y | 287 | 236 | |||
| IIEES | CHTH | Z | Pn | E | 2016-08-15 06:56:12 | 0.47 | y | 338 | 248 | |||
| IIEES | GHVR | Z | Pn | E | 2016-08-15 06:56:21 | -0.29 | y | 420 | 227 | |||
| IIEES | TABS | Z | Pn | E | 2016-08-15 06:56:25 | 0.41 | y | 447 | 148 | |||
| IIEES | ASAO | Z | Pn | E | 2016-08-15 06:56:32 | 0.34 | y | 501 | 237 | |||
| IIEES | YZKH | Z | Pn | E | 2016-08-15 06:56:34 | -0.37 | y | 523 | 180 | |||
| IIEES | GRMI | Z | Pn | E | 2016-08-15 06:56:42 | -3.72 | n | 4 | 618 | 290 | ||
| IIEES | SHRT | Z | Pn | E | 2016-08-15 06:56:49 | -0.49 | y | 644 | 125 | |||
| IIEES | BSRN | Z | Pn | E | 2016-08-15 06:56:56 | -0.58 | y | 705 | 143 | |||
