Event Specification - International Institute of Earthquake Engineering and Seismology

Magnitude	3
Date & Time (UTC)	2016-08-17 10:08:38.4
Date & Time (Local)	1395/5/27 14:38:38.4

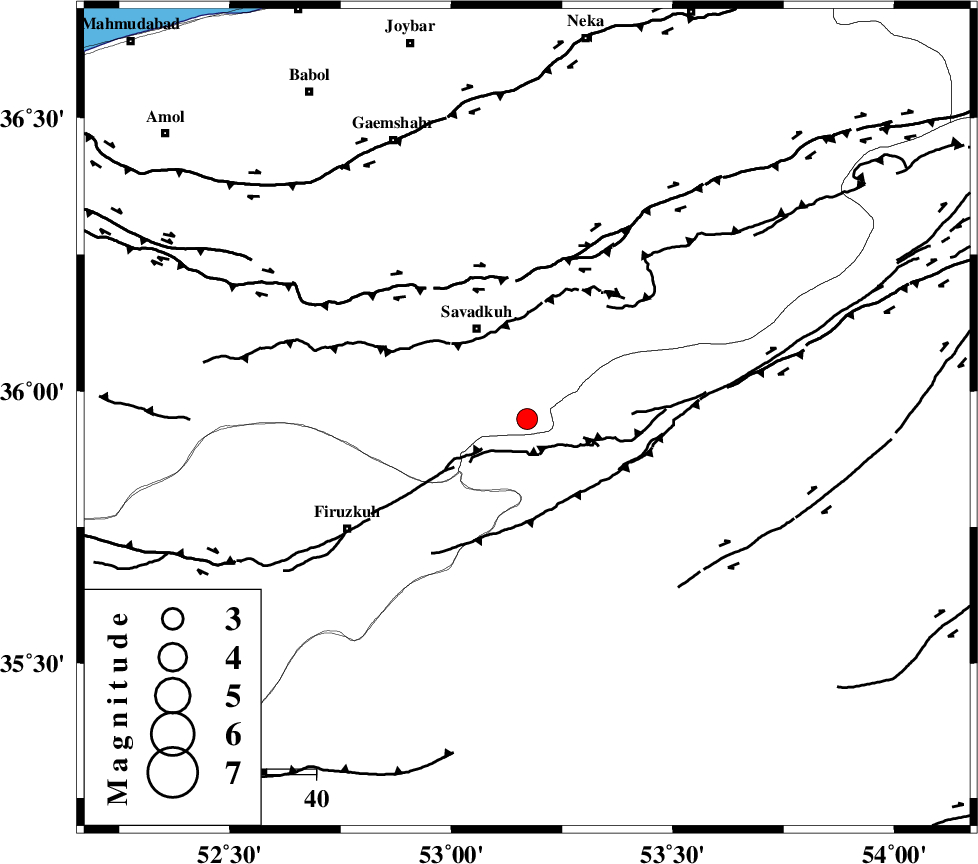

Location	Lat:35.949 Lon: 53.171
Region	Mazandaran Province, 21 km South-East of Pol-E-Sefid
Nearest Cities
	11 km North of Chashem, Semnan Province
	14 km South of Sangdeh, Mazandaran Province
	19 km South East of Shurmast-e peyrudbar, Mazandaran Province
	21 km South East of Pol-E-Sefid, Mazandaran Province
	24 km South East of Elahband, Mazandaran Province
Depth	15 km
Agency
Faults within 150 km:
	N_ALBORZ_F (Length: 360 km) , Distance to epicenter: 29 km
	ATARI_F (Length: 185 km) , Distance to epicenter: 30 km
	MOSHA_F (Length: 234 km) , Distance to epicenter: 56 km
Number of Phases	18
RMS	0.7
Number of Stations	17
Error in Latitude	>5.8 km
Error in Longitude	5.7 km
Error in Depth	9.8 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude
UID	Agency	Station	Component	Amplitude	Period	Arrival Time	Proccessing Time	Signal Clip
108617	IIEES	DAMV	E	203.5	0.56	2016-08-17 10:09:17	2016-08-20 06:36:00	n
108618	IIEES	GHVR	E	187.5	0.5	2016-08-17 10:09:50	2016-08-20 06:36:00	n
108619	IIEES	GHVR	N	230.5	0.77	2016-08-17 10:09:53	2016-08-20 06:36:00	n
108620	IIEES	SHRO	N	55	0.4	2016-08-17 10:10:02	2016-08-20 06:36:00	n
108621	IIEES	GIDE	N	61.2	0.44	2016-08-17 10:10:16	2016-08-20 06:36:00	n
108622	IIEES	GIDE	E	74.8	0.59	2016-08-17 10:10:26	2016-08-20 06:36:00	n
108623	IIEES	MRVT	N	22.5	0.45	2016-08-17 10:10:12	2016-08-20 06:36:00	n
108624	IIEES	MRVT	E	32	0.5	2016-08-17 10:10:13	2016-08-20 06:36:00	n
108625	IIEES	ASAO	N	21.2	0.55	2016-08-17 10:10:16	2016-08-20 06:36:00	n
108626	IIEES	ASAO	E	27.8	0.6	2016-08-17 10:10:17	2016-08-20 06:36:00	n
108627	IIEES	NASN	E	26.4	0.47	2016-08-17 10:10:28	2016-08-20 06:36:00	n
108628	IIEES	NASN	N	20.3	0.6	2016-08-17 10:10:30	2016-08-20 06:36:00	n
108629	IIEES	KHMZ	E	13.4	0.43	2016-08-17 10:10:39	2016-08-20 06:36:00	n
108630	IIEES	YZKH	E	18.3	0.57	2016-08-17 10:10:46	2016-08-20 06:36:00	n
108631	IIEES	YZKH	N	16.3	0.52	2016-08-17 10:10:50	2016-08-20 06:36:00	n
108632	IIEES	TABS	N	21.5	0.65	2016-08-17 10:10:57	2016-08-20 06:36:00	n
108633	IIEES	GRMI	E	4.8	0.33	2016-08-17 10:11:00	2016-08-20 06:36:00	n
108634	IIEES	GRMI	N	7.1	0.56	2016-08-17 10:11:02	2016-08-20 06:36:00	n

Phase

Agency

Station

Component

Phase Type

Phase Quality

First Motion

Observed Arrival Time

Time Residual

Loc. Flag

Input Weight

Distance

Azimuth

IIEES

DAMV

2016-08-17 10:08:56

-0.81

114

252

IIEES

CHTH

2016-08-17 10:09:08

-0.44

185

269

IIEES

GHVR

2016-08-17 10:09:15

0.13

239

228

IIEES

GHVR

2016-08-17 10:09:46

0.28

239

228

IIEES

SHRO

2016-08-17 10:09:17

-0.68

256

IIEES

GIDE

2016-08-17 10:09:25

0.9

312

291

IIEES

MRVT

2016-08-17 10:09:26

0.18

322

IIEES

ASAO

2016-08-17 10:09:26

0.11

326

242

IIEES

NASN

2016-08-17 10:09:30

0.36

351

186

IIEES

KHMZ

2016-08-17 10:09:34

0.48

382

231

IIEES

ZNJK

2016-08-17 10:09:36

-0.47

411

283

IIEES

YZKH

2016-08-17 10:09:38

0.71

416

161

IIEES

BJRD

2016-08-17 10:09:40

1.56

425

IIEES

TABS

2016-08-17 10:09:40

-0.71

442

124

IIEES

SNGE

2016-08-17 10:09:52

0.04

537

261

IIEES

GRMI

2016-08-17 10:09:55

-0.62

565

306

IIEES

SHRT

2016-08-17 10:10:12

-0.77

700

109

IIEES

BSRN

2016-08-17 10:10:12

-0.99

706

127
