Event Specification
Magnitude |
2.7 |
| Date & Time (UTC) | 2017-04-16 16:23:29.4 |
| Date & Time (Local) | 1396/1/27 20:53:29.4 |

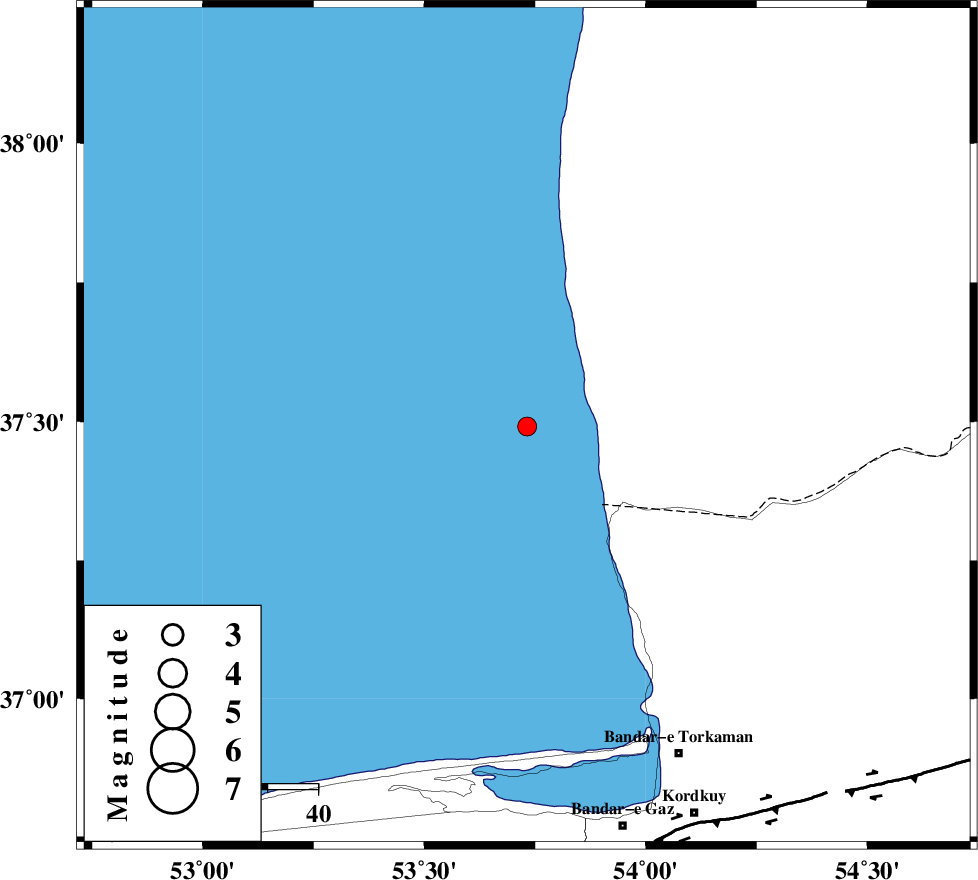

| Location | Lat:37.491 Lon: 53.732 |
| Region | Caspian Sea, 72 km North-West of Bandar-e torkaman |
Nearest Cities |
|
| 54 km North West of Gomishtappeh, Golestan Province | |
| 69 km North West of Banavar, Golestan Province | |
| 72 km North West of Bandar-e torkaman, Golestan Province | |
| 76 km North West of Sijval, Golestan Province | |
| 82 km North West of Bandar-e gaz, Golestan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| KHAZAR_F (Length: 523 km) , Distance to epicenter: 86 km | |
| N_ALBORZ_F (Length: 360 km) , Distance to epicenter: 111 km | |
| SHAVAR_F (Length: 87 km) , Distance to epicenter: 119 km | |
| Number of Phases | 6 |
| RMS | 0.3 |
| Number of Stations | 6 |
| Error in Latitude | >8.7 km |
| Error in Longitude | 2.1 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 115061 | IIEES | DAMV | E | 40.3 | 0.15 | 2017-04-16 16:24:45 | 2017-04-17 05:23:00 | n |
| 115062 | IIEES | DAMV | N | 28.6 | 0.51 | 2017-04-16 16:24:47 | 2017-04-17 05:23:00 | n |
| 115063 | IIEES | GHVR | E | 11.6 | 0.61 | 2017-04-16 16:25:33 | 2017-04-17 05:23:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | MRVT | Z | Pn | E | 2017-04-16 16:24:03 | 0.09 | y | 209 | 84 | |||
| IIEES | DAMV | Z | Pn | E | 2017-04-16 16:24:10 | 0.54 | y | 260 | 218 | |||
| IIEES | SHRO | Z | Pn | E | 2017-04-16 16:24:09 | -0.01 | y | 262 | 128 | |||
| IIEES | CHTH | Z | Pn | E | 2017-04-16 16:24:13 | -0.43 | y | 292 | 234 | |||
| IIEES | GHVR | Z | Pn | E | 2017-04-16 16:24:26 | -0.05 | y | 402 | 215 | |||
| IIEES | TABS | Z | Pn | E | 2017-04-16 16:24:42 | -0.27 | y | 525 | 143 | |||
