Event Specification
Magnitude |
3.2 |
| Date & Time (UTC) | 2017-08-12 10:29:35.1 |
| Date & Time (Local) | 1396/5/21 14:59:35.1 |

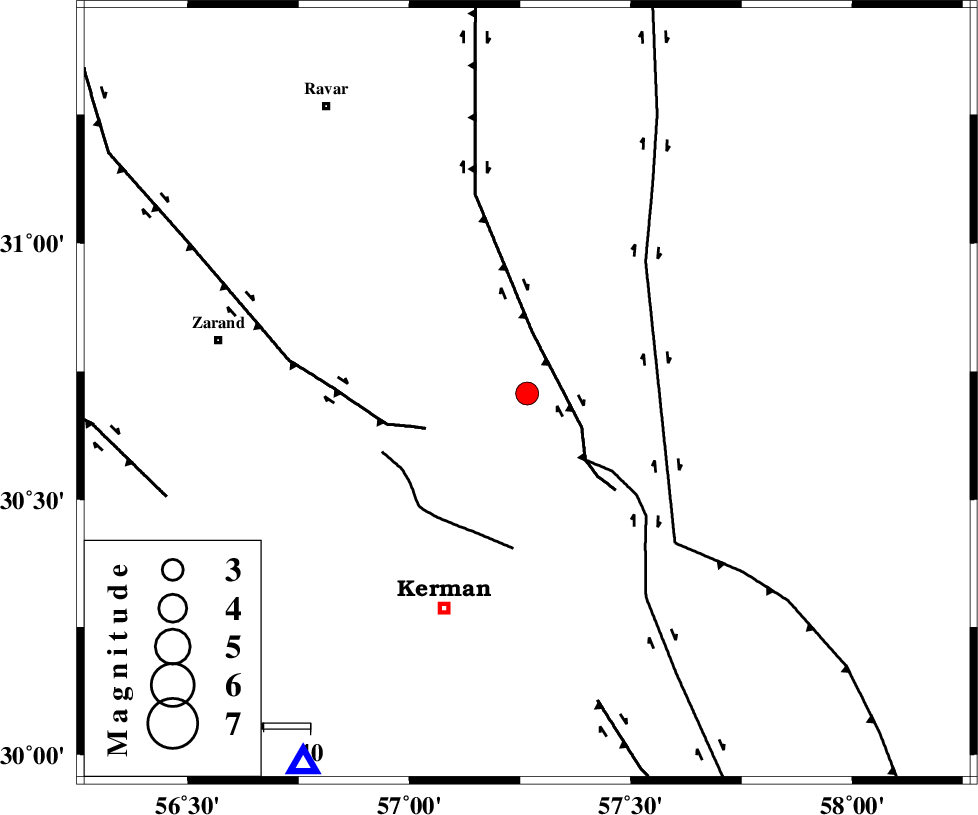

| Location | Lat:30.707 Lon: 57.266 |
| Region | Kerman Province, 50 km North-East of Kerman |
Nearest Cities |
|
| 14 km North East of Harjand, Kerman Province | |
| 23 km North of Dehlulu, Kerman Province | |
| 28 km East of Hejdak, Kerman Province | |
| 35 km North East of Hutak, Kerman Province | |
| 36 km North East of Chatrud, Kerman Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 13 km | |
| GOLBAF_SIRCH_F (Length: 114 km) , Distance to epicenter: 19 km | |
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 23 km | |
| Number of Phases | 10 |
| RMS | 0.2 |
| Number of Stations | 8 |
| Error in Latitude | >1.9 km |
| Error in Longitude | 2.5 km |
| Error in Depth | 4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 118472 | IIEES | KRBR | E | 696.8 | 0.22 | 2017-08-12 10:30:03 | 2017-08-12 11:12:00 | n |
| 118473 | IIEES | BSRN | N | 161.5 | 0.47 | 2017-08-12 10:30:44 | 2017-08-12 11:12:00 | n |
| 118474 | IIEES | YZKH | E | 55.7 | 0.38 | 2017-08-12 10:31:14 | 2017-08-12 11:12:00 | n |
| 118475 | IIEES | YZKH | N | 65.5 | 0.69 | 2017-08-12 10:31:18 | 2017-08-12 11:12:00 | n |
| 118476 | IIEES | TABS | N | 61.7 | 0.66 | 2017-08-12 10:31:21 | 2017-08-12 11:12:00 | n |
| 118477 | IIEES | NASN | E | 14.6 | 0.73 | 2017-08-12 10:31:58 | 2017-08-12 11:12:00 | n |
| 118478 | IIEES | SHRO | E | 8.9 | 0.64 | 2017-08-12 10:32:42 | 2017-08-12 11:12:00 | n |
| 118479 | IIEES | SHRO | N | 8 | 0.53 | 2017-08-12 10:32:44 | 2017-08-12 11:12:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KRBR | Z | Pg | E | 2017-08-12 10:29:51 | -0.06 | y | 93.9 | 211 | |||
| IIEES | KRBR | N | Sg | E | 2017-08-12 10:30:03 | -0.02 | y | 93.9 | 211 | |||
| IIEES | BSRN | Z | Pn | E | 2017-08-12 10:30:10 | -0.06 | y | 225 | 51 | |||
| IIEES | BSRN | N | Sg | E | 2017-08-12 10:30:39 | 0.07 | y | 225 | 51 | |||
| IIEES | YZKH | Z | Pn | E | 2017-08-12 10:30:22 | -0.06 | y | 315 | 307 | |||
| IIEES | TABS | Z | Pn | E | 2017-08-12 10:30:23 | -0.02 | y | 327 | 358 | |||
| IIEES | BNDS | Z | Pn | E | 2017-08-12 10:30:30 | 0.11 | y | 382 | 196 | |||
| IIEES | NASN | Z | Pn | E | 2017-08-12 10:30:43 | 0.38 | y | 482 | 300 | |||
| IIEES | GHIR | Z | Pn | E | 2017-08-12 10:30:44 | -0.06 | y | 494 | 238 | |||
| IIEES | SHRO | Z | Pn | E | 2017-08-12 10:30:57 | -0.33 | y | 599 | 349 | |||
