Event Specification
Magnitude |
2.6 |
| Date & Time (UTC) | 2017-10-21 01:26:35.8 |
| Date & Time (Local) | 1396/7/29 04:56:35.8 |

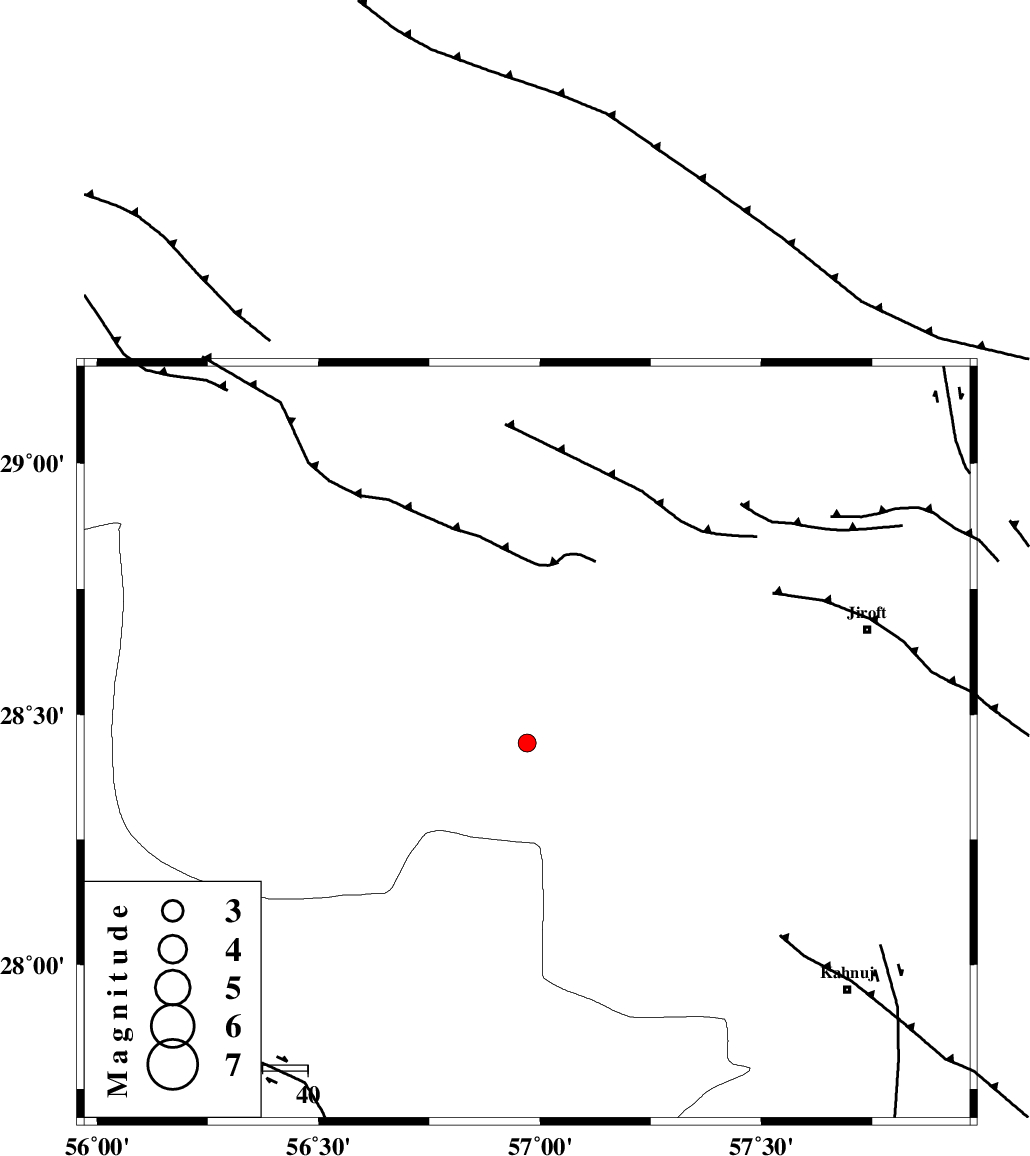

| Location | Lat:28.443 Lon: 56.971 |
| Region | Kerman Province, 79 km South-West of Jiroft |
Nearest Cities |
|
| 15 km North of Sarkhan, Kerman Province | |
| 32 km South West of Dolatabad, Kerman Province | |
| 44 km North West of Hurpasefid, Kerman Province | |
| 51 km North West of Faryab, Kerman Province | |
| 57 km East of Shahmaran, Kerman Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 49 km | |
| SABZEVARAN_F (Length: 190 km) , Distance to epicenter: 75 km | |
| ZENDAN_MINAB_F_Z1 (Length: 183 km) , Distance to epicenter: 88 km | |
| Number of Phases | 6 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | >1 km |
| Error in Longitude | 2.5 km |
| Error in Depth | 3.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 120608 | IIEES | BNDS | E | 126 | 0.43 | 2017-10-21 01:27:17 | 2017-10-21 08:46:00 | n |
| 120609 | IIEES | BNDS | N | 109.3 | 0.18 | 2017-10-21 01:27:20 | 2017-10-21 08:46:00 | n |
| 120610 | IIEES | KRBR | E | 54.2 | 0.28 | 2017-10-21 01:27:33 | 2017-10-21 08:46:00 | n |
| 120611 | IIEES | KRBR | N | 49.7 | 0.28 | 2017-10-21 01:27:33 | 2017-10-21 08:46:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BNDS | Z | Pg | E | 2017-10-21 01:26:59 | 0.11 | y | 140 | 214 | |||
| IIEES | BNDS | N | Sg | E | 2017-10-21 01:27:16 | -0.07 | y | 140 | 214 | |||
| IIEES | KRBR | Z | Pg | E | 2017-10-21 01:27:04 | -0.07 | y | 172 | 353 | |||
| IIEES | KRBR | N | Sg | E | 2017-10-21 01:27:25 | 0.03 | y | 172 | 353 | |||
| IIEES | GHIR | Z | Pn | E | 2017-10-21 01:27:31 | 0 | y | 391 | 268 | |||
| IIEES | ZHSF | Z | Pn | E | 2017-10-21 01:27:32 | -0.01 | y | 393 | 70 | |||
