Event Specification
Magnitude |
2.7 |
| Date & Time (UTC) | 2017-10-31 14:19:17.5 |
| Date & Time (Local) | 1396/8/9 17:49:17.5 |

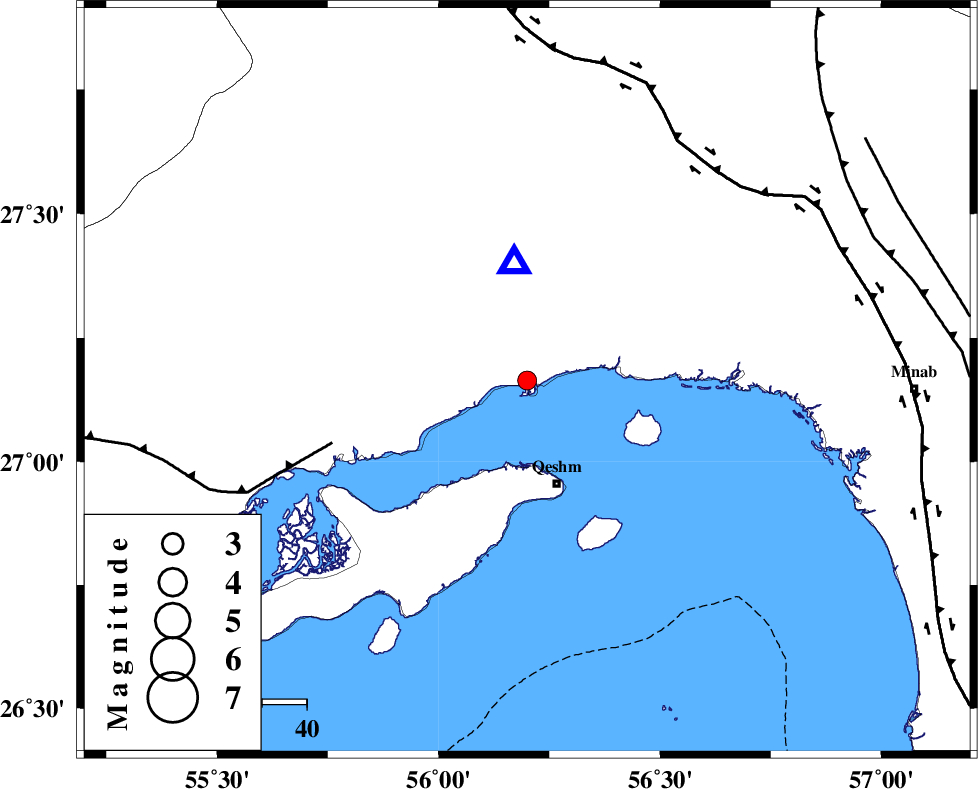

| Location | Lat:27.164 Lon: 56.2 |
| Region | Hormozgan Province, 8 km of Bandar-e abbas |
Nearest Cities |
|
| 8 km of Bandar-e abbas, Hormozgan Province | |
| 24 km North of Qeshm, Hormozgan Province | |
| 45 km North East of Suza, Hormozgan Province | |
| 60 km South East of Fin, Hormozgan Province | |
| 65 km North East of Bandar-e khamir, Hormozgan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MFF1 (Length: 180 km) , Distance to epicenter: 46 km | |
| HZF2 (Length: 437 km) , Distance to epicenter: 63 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 84 km | |
| Number of Phases | 6 |
| RMS | 0.3 |
| Number of Stations | 4 |
| Error in Latitude | >7.4 km |
| Error in Longitude | 4.9 km |
| Error in Depth | 6.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 120975 | IIEES | KRBR | E | 19.5 | 0.46 | 2017-10-31 14:20:55 | 2017-11-01 08:22:00 | n |
| 120976 | IIEES | KRBR | N | 24.8 | 0.72 | 2017-10-31 14:20:56 | 2017-11-01 08:22:00 | n |
| 120977 | IIEES | GHIR | E | 13.9 | 0.21 | 2017-10-31 14:20:56 | 2017-11-01 08:22:00 | n |
| 120978 | IIEES | GHIR | N | 21.6 | 0.67 | 2017-10-31 14:21:06 | 2017-11-01 08:22:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BNDS | Z | Pg | E | 2017-10-31 14:19:22 | -0.07 | y | 26.2 | 354 | |||
| IIEES | KRBR | Z | Pn | E | 2017-10-31 14:20:04 | -0.36 | y | 317 | 10 | |||
| IIEES | KRBR | N | Sg | E | 2017-10-31 14:20:47 | 0.22 | y | 317 | 10 | |||
| IIEES | GHIR | Z | Pn | E | 2017-10-31 14:20:07 | 0.47 | y | 340 | 292 | |||
| IIEES | GHIR | N | Sg | E | 2017-10-31 14:20:52 | -0.19 | y | 340 | 292 | |||
| IIEES | YZKH | Z | Pn | E | 2017-10-31 14:20:39 | -0.09 | y | 600 | 345 | |||
