Event Specification
Magnitude |
2.3 |
| Date & Time (UTC) | 2017-11-29 01:06:17.1 |
| Date & Time (Local) | 1396/9/8 04:36:17.1 |

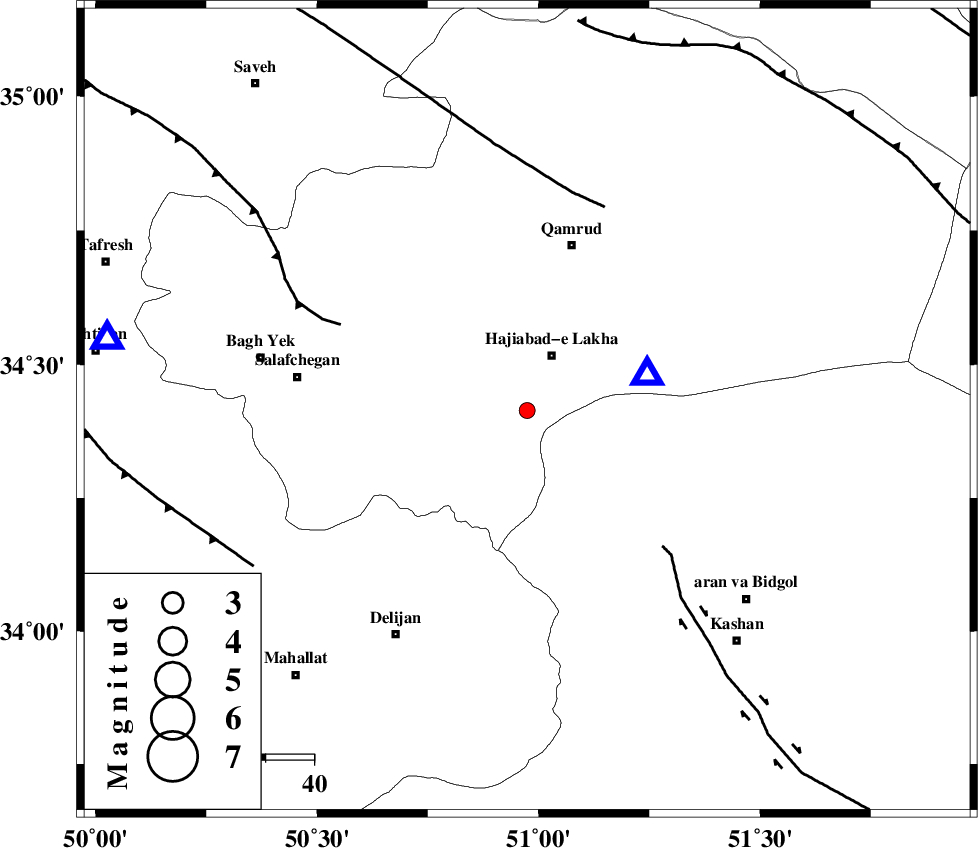

| Location | Lat:34.414 Lon: 50.974 |
| Region | Qom Province, 28 km South-East of Qom |
Nearest Cities |
|
| 10 km North East of Kahak, Qom Province | |
| 13 km South of Hajiabad-e lakha, Qom Province | |
| 21 km North of Yahyaabad, Esfahan Province | |
| 28 km South East of Qom, Qom Province | |
| 34 km North of Armak, Esfahan Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| KASHAN_F (Length: 44 km) , Distance to epicenter: 40 km | |
| INDES_F (Length: 98 km) , Distance to epicenter: 43 km | |
| KUSHK_E_NOSRAT_F (Length: 230 km) , Distance to epicenter: 45 km | |
| Number of Phases | 9 |
| RMS | 0 |
| Number of Stations | 6 |
| Error in Latitude | >1 km |
| Error in Longitude | 1.2 km |
| Error in Depth | 1.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 122965 | IIEES | GHVR | E | 421.5 | 0.21 | 2017-11-29 01:06:27 | 2017-11-29 06:58:00 | n |
| 122966 | IIEES | GHVR | N | 333 | 0.13 | 2017-11-29 01:06:27 | 2017-11-29 06:58:00 | n |
| 122967 | IIEES | DAMV | N | 38.6 | 0.33 | 2017-11-29 01:07:05 | 2017-11-29 06:58:00 | n |
| 122968 | IIEES | DAMV | E | 49.2 | 0.25 | 2017-11-29 01:07:05 | 2017-11-29 06:58:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GHVR | Z | Pg | E | 2017-11-29 01:06:22 | -0.04 | y | 25.9 | 74 | |||
| IIEES | GHVR | N | Sg | E | 2017-11-29 01:06:26 | 0.05 | y | 25.9 | 74 | |||
| IIEES | ASAO | Z | Pg | E | 2017-11-29 01:06:33 | 1.61 | n | 4 | 88.4 | 280 | ||
| IIEES | KHMZ | Z | Pg | E | 2017-11-29 01:06:37 | 0.01 | y | 120 | 232 | |||
| IIEES | KHMZ | E | Sg | E | 2017-11-29 01:06:51 | -0.01 | y | 120 | 232 | |||
| IIEES | DAMV | Z | Pg | E | 2017-11-29 01:06:43 | -0.1 | y | 163 | 34 | |||
| IIEES | CHTH | Z | Pg | E | 2017-11-29 01:06:44 | 0.02 | y | 166 | 5 | |||
| IIEES | THKV | Z | Pg | E | 2017-11-29 01:06:44 | 0.06 | y | 167 | 357 | |||
| IIEES | NASN | Z | Pn | E | 2017-11-29 01:06:55 | 0.03 | y | 247 | 136 | |||
