Event Specification
Magnitude |
2.8 |
| Date & Time (UTC) | 2017-12-09 02:08:46.1 |
| Date & Time (Local) | 1396/9/18 05:38:46.1 |

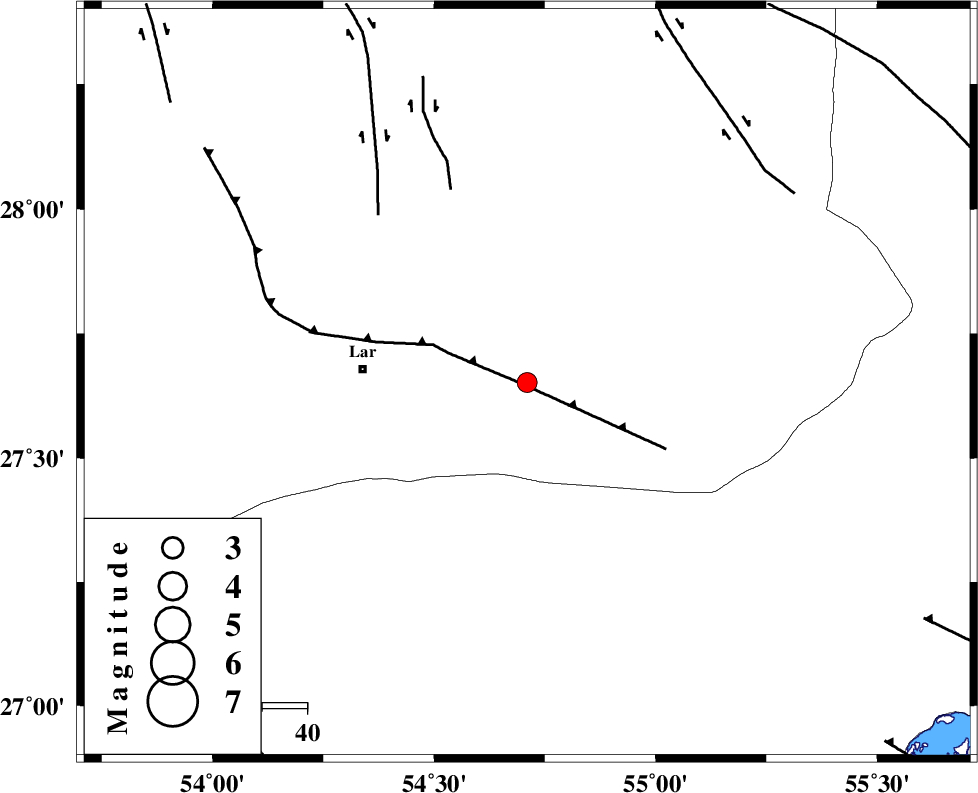

| Location | Lat:27.651 Lon: 54.71 |
| Region | Fars Province, 37 km -East of Lar |
Nearest Cities |
|
| 33 km East of Latifi, Fars Province | |
| 36 km South East of Dehkuyeh, Fars Province | |
| 37 km East of Lar, Fars Province | |
| 54 km East of Grash, Fars Province | |
| 61 km North East of Bastak, Hormozgan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| LAR_F (Length: 99 km) , Distance to epicenter: 5 km | |
| BERIZ_F (Length: 49 km) , Distance to epicenter: 30 km | |
| MFF1 (Length: 180 km) , Distance to epicenter: 62 km | |
| Number of Phases | 7 |
| RMS | 0.1 |
| Number of Stations | 5 |
| Error in Latitude | >8.5 km |
| Error in Longitude | 4 km |
| Error in Depth | 9.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 123691 | IIEES | BNDS | N | 140.9 | 0.37 | 2017-12-09 02:09:41 | 2017-12-09 07:51:00 | n |
| 123692 | IIEES | GHIR | N | 110.9 | 0.4 | 2017-12-09 02:09:44 | 2017-12-09 07:51:00 | n |
| 123693 | IIEES | GHIR | E | 81 | 0.46 | 2017-12-09 02:09:52 | 2017-12-09 07:51:00 | n |
| 123694 | IIEES | KRBR | E | 20.6 | 0.13 | 2017-12-09 02:10:21 | 2017-12-09 07:51:00 | n |
| 123695 | IIEES | KRBR | N | 23.4 | 0.32 | 2017-12-09 02:10:23 | 2017-12-09 07:51:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BNDS | Z | Pg | E | 2017-12-09 02:09:10 | -0.09 | y | 147 | 101 | |||
| IIEES | BNDS | N | S | E | 2017-12-09 02:09:28 | 0.06 | y | 147 | 101 | |||
| IIEES | GHIR | Z | Pg | E | 2017-12-09 02:09:16 | 0.12 | y | 184 | 293 | |||
| IIEES | GHIR | E | Sg | E | 2017-12-09 02:09:38 | -0.06 | y | 184 | 293 | |||
| IIEES | KRBR | Z | Pn | E | 2017-12-09 02:09:34 | -0.1 | y | 327 | 37 | |||
| IIEES | YZKH | Z | Pn | E | 2017-12-09 02:09:59 | 0.05 | y | 526 | 359 | |||
| IIEES | BSRN | Z | Pn | E | 2017-12-09 02:10:13 | 0.05 | y | 641 | 41 | |||
