Event Specification
Magnitude |
2 |
| Date & Time (UTC) | 2018-02-04 01:48:50.4 |
| Date & Time (Local) | 1396/11/15 05:18:50.4 |
| Location | Lat:37.917 Lon: 45.617 |
| Region | Azarbaijan Sharghi Province, 30 km South of Shabestar |
Nearest Cities |
|
| 8 km North of Sarayedeh, Azarbaijan Sharghi Province | |
| 24 km South of Vaiqan, Azarbaijan Sharghi Province | |
| 25 km South of Shandabad, Azarbaijan Sharghi Province | |
| 28 km North West of Teymurlu, Azarbaijan Sharghi Province | |
| 29 km North West of Gokan, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |

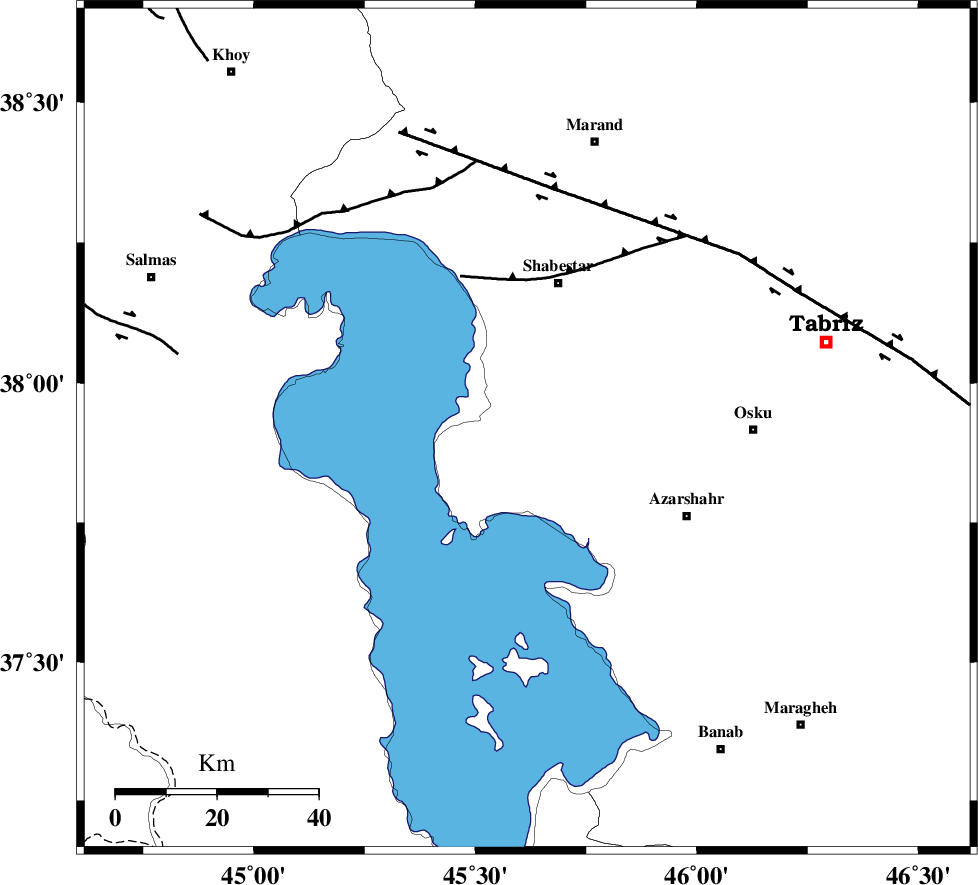

Faults within 150 km: |
|
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 30 km | |
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 48 km | |
| N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 51 km | |
| Number of Phases | 7 |
| RMS | 0.4 |
| Number of Stations | 5 |
| Error in Latitude | >3.1 km |
| Error in Longitude | 5.9 km |
| Error in Depth | 8.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 127817 | IIEES | SRSL | E | 24.2 | 0.48 | 2018-02-04 01:49:49 | 2018-02-04 05:38:00 | n |
| 127818 | IIEES | SRSL | N | 42 | 0.48 | 2018-02-04 01:49:50 | 2018-02-04 05:38:00 | n |
| 127819 | IIEES | GRMI | E | 6.7 | 0.55 | 2018-02-04 01:49:58 | 2018-02-04 05:38:00 | n |
| 127820 | IIEES | GRMI | N | 5.1 | 0.43 | 2018-02-04 01:50:01 | 2018-02-04 05:38:00 | n |
| 127821 | IIEES | ZNJK | N | 3.2 | 0.25 | 2018-02-04 01:50:19 | 2018-02-04 05:38:00 | n |
| 127822 | IIEES | SNGE | E | 2.7 | 0.36 | 2018-02-04 01:50:32 | 2018-02-04 05:38:00 | n |
| 127823 | IIEES | SNGE | N | 2 | 0.66 | 2018-02-04 01:50:34 | 2018-02-04 05:38:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | MAKU | Z | Pg | E | 2018-02-04 01:49:20 | -0.03 | y | 179 | 333 | |||
| IIEES | SRSL | Z | Pg | E | 2018-02-04 01:49:21 | -0.51 | y | 190 | 185 | |||
| IIEES | SRSL | N | Sg | E | 2018-02-04 01:49:45 | 0.41 | y | 190 | 185 | |||
| IIEES | GRMI | Z | Pn | E | 2018-02-04 01:49:26 | 0.63 | y | 222 | 63 | |||
| IIEES | GRMI | N | Sg | E | 2018-02-04 01:49:53 | -0.28 | y | 222 | 63 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-02-04 01:49:36 | 0.23 | y | 305 | 116 | |||
| IIEES | SNGE | Z | Pn | E | 2018-02-04 01:49:41 | -0.5 | y | 350 | 153 | |||
