Event Specification
Magnitude |
2.5 |
| Date & Time (UTC) | 2018-02-23 07:33:05.1 |
| Date & Time (Local) | 1396/12/4 11:03:05.1 |

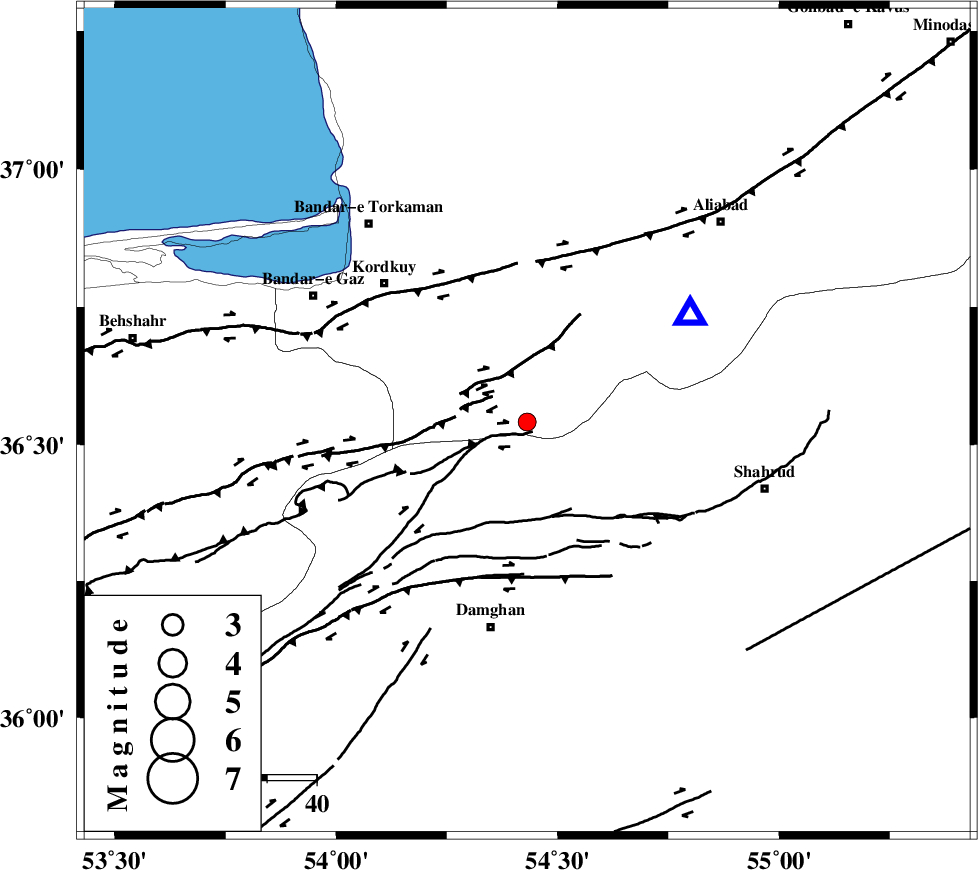

| Location | Lat:36.541 Lon: 54.431 |
| Region | Golestan Province, 33 km South of Gorgan |
Nearest Cities |
|
| 2 km of Cheharbagh, Golestan Province | |
| 14 km South of Naharkhoran, Golestan Province | |
| 21 km North West of Majen, Semnan Province | |
| 33 km South of Gorgan, Golestan Province | |
| 35 km South of Lamsak, Golestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| ASTANEH_F (Length: 72 km) , Distance to epicenter: 2 km | |
| SHAVAR_F (Length: 87 km) , Distance to epicenter: 4 km | |
| N_ALBORZ_F (Length: 360 km) , Distance to epicenter: 8 km | |
| Number of Phases | 12 |
| RMS | 0.4 |
| Number of Stations | 9 |
| Error in Latitude | >4.1 km |
| Error in Longitude | 3.2 km |
| Error in Depth | 7.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 128909 | IIEES | SHRO | E | 47.4 | 0.44 | 2018-02-23 07:33:57 | 2018-02-24 07:46:00 | n |
| 128910 | IIEES | MRVT | N | 33.3 | 0.25 | 2018-02-23 07:34:08 | 2018-02-24 07:46:00 | n |
| 128911 | IIEES | MRVT | E | 31.8 | 0.25 | 2018-02-23 07:34:09 | 2018-02-24 07:46:00 | n |
| 128912 | IIEES | DAMV | N | 20.3 | 0.51 | 2018-02-23 07:34:22 | 2018-02-24 07:46:00 | n |
| 128913 | IIEES | DAMV | E | 20.2 | 0.58 | 2018-02-23 07:34:26 | 2018-02-24 07:46:00 | n |
| 128914 | IIEES | BJRD | E | 12.6 | 0.42 | 2018-02-23 07:34:39 | 2018-02-24 07:46:00 | n |
| 128915 | IIEES | GHVR | E | 12.8 | 0.59 | 2018-02-23 07:34:53 | 2018-02-24 07:46:00 | n |
| 128916 | IIEES | GIDE | N | 11.7 | 0.49 | 2018-02-23 07:35:03 | 2018-02-24 07:46:00 | n |
| 128917 | IIEES | GIDE | E | 14 | 0.82 | 2018-02-23 07:35:10 | 2018-02-24 07:46:00 | n |
| 128918 | IIEES | ASAO | E | 2.7 | 0.52 | 2018-02-23 07:35:26 | 2018-02-24 07:46:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHRO | Z | Pg | E | 2018-02-23 07:33:30 | -0.15 | y | 154 | 112 | |||
| IIEES | SHRO | N | Sg | E | 2018-02-23 07:33:49 | -0.15 | y | 154 | 112 | |||
| IIEES | MRVT | Z | Pg | E | 2018-02-23 07:33:36 | -0.37 | y | 193 | 49 | |||
| IIEES | MRVT | N | Sg | E | 2018-02-23 07:34:00 | 0.09 | y | 193 | 49 | |||
| IIEES | DAMV | Z | Pn | E | 2018-02-23 07:33:43 | -0.25 | y | 243 | 246 | |||
| IIEES | DAMV | N | Sg | E | 2018-02-23 07:34:13 | -0.53 | y | 243 | 246 | |||
| IIEES | BJRD | Z | Pn | E | 2018-02-23 07:33:49 | 0.01 | y | 294 | 63 | |||
| IIEES | CHTH | Z | Pn | E | 2018-02-23 07:33:51 | 0.69 | y | 305 | 258 | |||
| IIEES | GHVR | Z | Pn | E | 2018-02-23 07:33:58 | -0.53 | y | 368 | 233 | |||
| IIEES | TABS | Z | Pn | E | 2018-02-23 07:34:03 | 0.78 | y | 404 | 142 | |||
| IIEES | GIDE | Z | Pn | E | 2018-02-23 07:34:03 | 0.11 | y | 406 | 277 | |||
| IIEES | ASAO | Z | Pn | E | 2018-02-23 07:34:10 | 0.65 | y | 456 | 242 | |||
