Event Specification
Magnitude |
2.7 |
| Date & Time (UTC) | 2019-12-08 22:32:45.2 |
| Date & Time (Local) | 1398/9/18 02:02:45.2 |

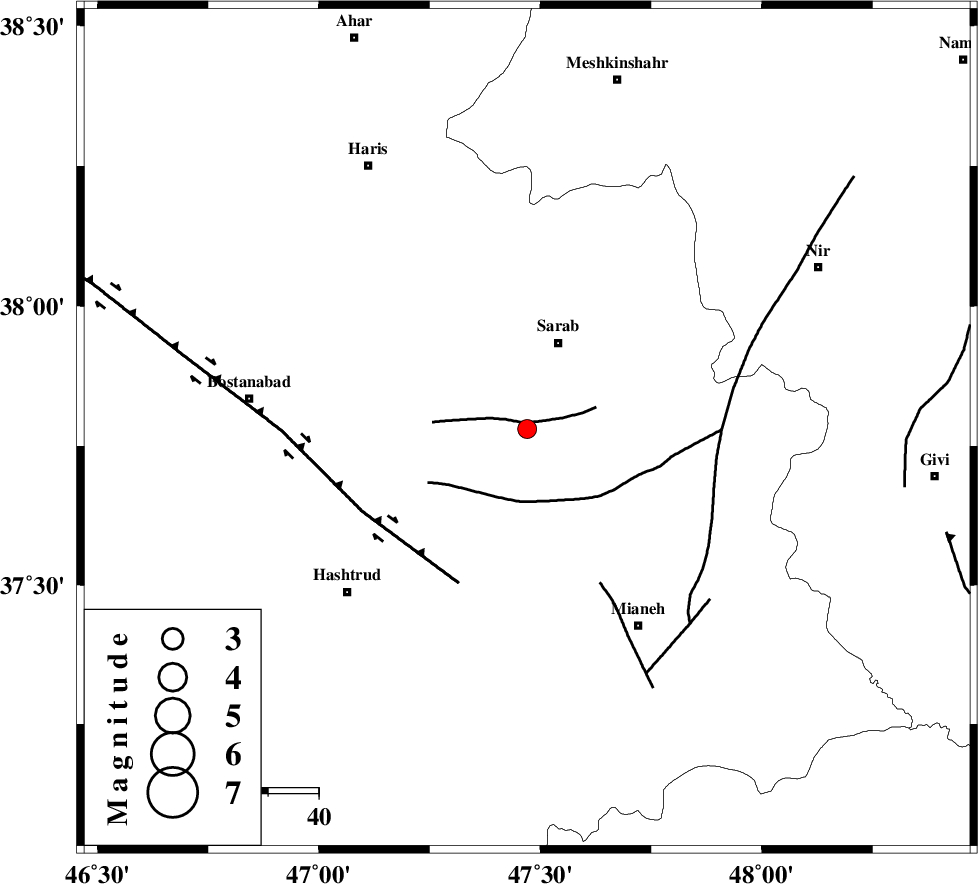

| Location | Lat:37.78 Lon: 47.47 |
| Region | Azarbaijan Sharghi Province, 18 km South of Sarab |
Nearest Cities |
|
| 8 km of Asbforushan, Azarbaijan Sharghi Province | |
| 13 km of Abarghan, Azarbaijan Sharghi Province | |
| 18 km South of Sarab, Azarbaijan Sharghi Province | |
| 20 km North of Somee-ye olia, Azarbaijan Sharghi Province | |
| 21 km West of Pataveh, Azarbaijan Sharghi Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| BOZQUSH (Length: 70 km) , Distance to epicenter: 3 km | |
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 34 km | |
| SANGAVAR_F (Length: 61 km) , Distance to epicenter: 75 km | |
| Number of Phases | 7 |
| RMS | 0.9 |
| Number of Stations | 7 |
| Error in Latitude | >3 km |
| Error in Longitude | 0 km |
| Error in Depth | 16 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 149439 | IIEES SC | GRMI | Z | 74 | 1 | 2019-12-08 22:33:25 | 2019-12-09 02:45:00 | n |
| 149440 | IIEES SC | AZR | Z | 200 | 1 | 2019-12-08 22:33:23 | 2019-12-09 02:45:00 | n |
| 149441 | IIEES SC | ZNJK | Z | 3.7 | 1 | 2019-12-08 22:33:54 | 2019-12-09 02:45:00 | n |
| 149442 | IIEES SC | MAHB | Z | 58 | 1 | 2019-12-08 22:33:40 | 2019-12-09 02:45:00 | n |
| 149443 | IIEES SC | GIDE | Z | 45 | 1 | 2019-12-08 22:34:01 | 2019-12-09 02:45:00 | n |
| 149444 | IIEES SC | SRSL | Z | 27 | 1 | 2019-12-08 22:34:18 | 2019-12-09 02:45:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GRMI | Z | IP | I | 2019-12-08 22:33:05 | -0.5 | y | 122 | 18 | |||
| IIEES SC | AZR | Z | IP | I | 2019-12-08 22:33:06 | -0.7 | y | 133 | 265 | |||
| IIEES SC | ZNJK | Z | IP | I | 2019-12-08 22:33:11 | -0.9 | y | 166 | 139 | |||
| IIEES SC | MAHB | Z | IP | I | 2019-12-08 22:33:16 | 0.1 | y | 189 | 234 | |||
| IIEES SC | GIDE | Z | IP | I | 2019-12-08 22:33:24 | 1.6 | y | 233 | 114 | |||
| IIEES SC | SRSL | Z | IP | I | 2019-12-08 22:33:24 | -0.2 | y | 255 | 226 | |||
| IIEES SC | MAKU | Z | IP | I | 2019-12-08 22:33:32 | 1.6 | y | 300 | 306 | |||
