Event Specification
Magnitude |
2.5 |
| Date & Time (UTC) | 2014-11-10 18:15:58.6 |
| Date & Time (Local) | 1393/8/19 21:45:58.6 |

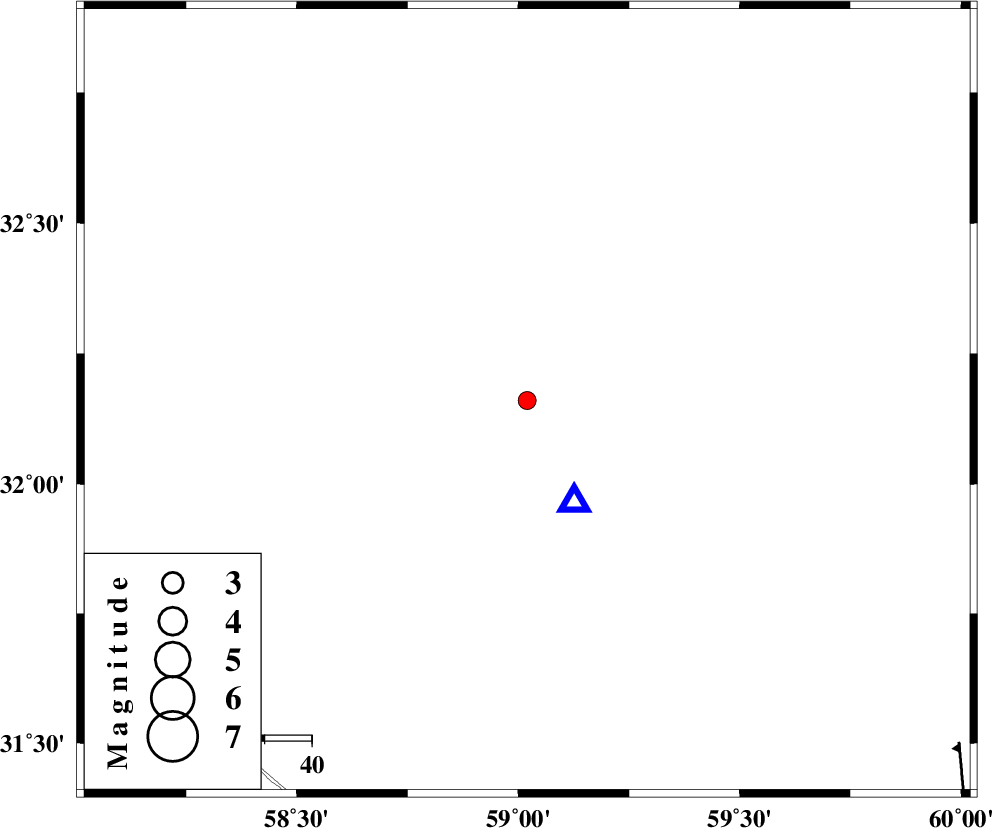

| Location | Lat:32.16 Lon: 59.02 |
| Region | Khorasan(south) Province, 85 km South-West of Birjand |
Nearest Cities |
|
| 39 km South East of Hamand, Khorasan(south) Province | |
| 48 km South West of Mokhtaran, Khorasan(south) Province | |
| 50 km South of Mazhan, Khorasan(south) Province | |
| 58 km South West of Gaz, Khorasan(south) Province | |
| 60 km South West of Kalateh soleyman, Khorasan(south) Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MOHAMMADABAD_F (Length: 71 km) , Distance to epicenter: 91 km | |
| NOZAD_F (Length: 27 km) , Distance to epicenter: 116 km | |
| E_NEH_F (Length: 148 km) , Distance to epicenter: 117 km | |
| Number of Phases | 4 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >5.3 km |
| Error in Longitude | 8.1 km |
| Error in Depth | 3.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 94248 | IIEES | YZKH | E | 11 | 0.48 | 2014-11-10 18:18:00 | 2014-11-10 07:01:00 | n |
| 94249 | IIEES | YZKH | N | 6.6 | 0.36 | 2014-11-10 18:18:00 | 2014-11-10 07:01:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BSRN | Z | Pg | E | 2014-11-10 18:16:03 | -0.07 | y | 24 | 154 | |||
| IIEES | TABS | Z | Pn | E | 2014-11-10 18:16:36 | 0.14 | y | 242 | 313 | |||
| IIEES | TABS | E | Sg | E | 2014-11-10 18:17:07 | -0.11 | y | 242 | 313 | |||
| IIEES | YZKH | Z | Pn | E | 2014-11-10 18:16:58 | 0.06 | y | 418 | 275 | |||
