Event Specification
Magnitude |
3.2 |
| Date & Time (UTC) | 2014-12-07 14:37:35.5 |
| Date & Time (Local) | 1393/9/16 18:07:35.5 |

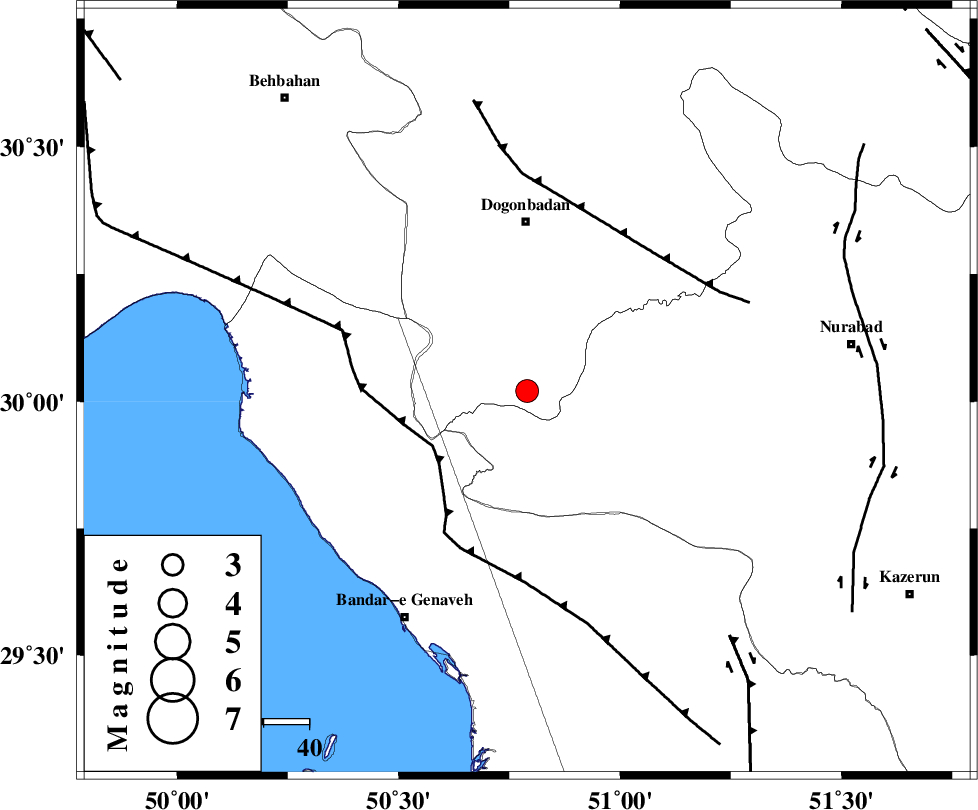

| Location | Lat:30.02 Lon: 50.79 |
| Region | Kohkiluieh va boyerahmad Province, 38 km South of Dogonbadan |
Nearest Cities |
|
| 37 km South of Dogonbadan, Kohkiluieh va boyerahmad Province | |
| 40 km West of Babamonir, Fars Province | |
| 45 km East of Siyahmakan-e bozorg, Bushehr Province | |
| 45 km North East of Mohammad salehi, Bushehr Province | |
| 52 km South West of Basht, Kohkiluieh va boyerahmad Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| ZFF3 (Length: 125 km) , Distance to epicenter: 24 km | |
| MISHAN_F (Length: 76 km) , Distance to epicenter: 41 km | |
| RAG_E_SEFID_F (Length: 84 km) , Distance to epicenter: 42 km | |
| Number of Phases | 6 |
| RMS | 0.1 |
| Number of Stations | 5 |
| Error in Latitude | >2.3 km |
| Error in Longitude | 3.2 km |
| Error in Depth | 4.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 94463 | IIEES | AHRM | E | 725.3 | 0.48 | 2014-12-07 14:38:31 | 2014-12-07 03:38:00 | n |
| 94464 | IIEES | SHGR | E | 63.4 | 0.44 | 2014-12-07 14:39:02 | 2014-12-07 03:38:00 | n |
| 94465 | IIEES | SHGR | N | 68.7 | 0.48 | 2014-12-07 14:39:06 | 2014-12-07 03:38:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | AHRM | Z | Pg | E | 2014-12-07 14:37:58 | -0.02 | y | 137 | 159 | |||
| IIEES | SHGR | Z | Pn | E | 2014-12-07 14:38:20 | 0.1 | y | 300 | 321 | |||
| IIEES | SHGR | E | Sg | E | 2014-12-07 14:38:59 | -0.07 | y | 300 | 321 | |||
| IIEES | NASN | Z | Pn | E | 2014-12-07 14:38:28 | 0.08 | y | 364 | 31 | |||
| IIEES | YZKH | Z | Pn | E | 2014-12-07 14:38:38 | -0.14 | y | 448 | 53 | |||
| IIEES | TABS | Z | Pn | E | 2014-12-07 14:39:13 | 0.07 | y | 722 | 54 | |||
