Event Specification
Magnitude |
3.2 |
| Date & Time (UTC) | 2020-10-04 18:14:15.1 |
| Date & Time (Local) | 1399/7/13 21:44:15.1 |

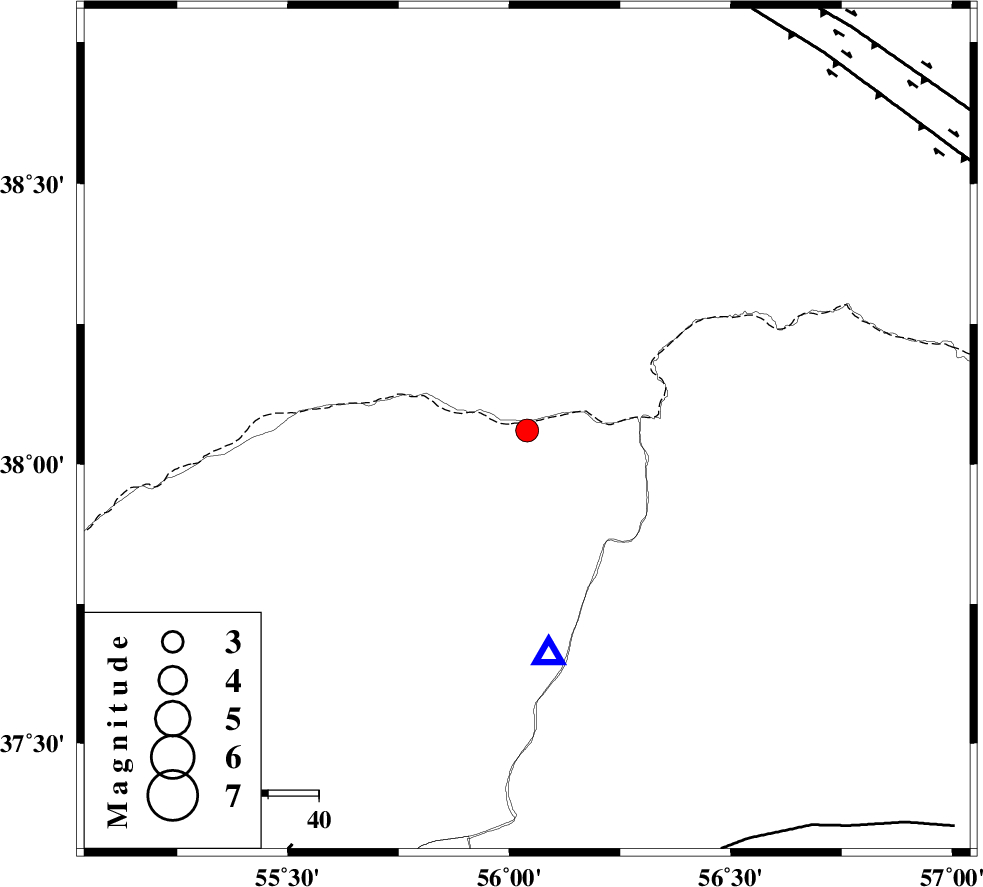

| Location | Lat:38.06 Lon: 56.04 |
| Region | Golestan Province, 90 km North-East of Kalaleh |
Nearest Cities |
|
| 19 km North of Moravehtappeh, Golestan Province | |
| 25 km North West of Qazanqayeh, Golestan Province | |
| 44 km North West of Garmab, Khorasan(north) Province | |
| 47 km North East of Karand, Golestan Province | |
| 48 km North East of Golidagh, Golestan Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| ROBATE_QARABIL_F (Length: 168 km) , Distance to epicenter: 92 km | |
| MAIN_KOPEHDAGH_F1 (Length: 318 km) , Distance to epicenter: 95 km | |
| MAIN_KOPEHDAGH_F2 (Length: 131 km) , Distance to epicenter: 102 km | |
| Number of Phases | 11 |
| RMS | 0.6 |
| Number of Stations | 11 |
| Error in Latitude | >4 km |
| Error in Longitude | 0 km |
| Error in Depth | 6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 158232 | IIEES SC | MRVT | Z | 540 | 1 | 2020-10-04 18:14:31 | 2020-10-06 11:13:00 | n |
| 158233 | IIEES SC | BJRD | Z | 88 | 1 | 2020-10-04 18:15:01 | 2020-10-06 11:13:00 | n |
| 158234 | IIEES SC | ABGH | Z | 580 | 1 | 2020-10-04 18:15:12 | 2020-10-06 11:13:00 | n |
| 158235 | IIEES SC | SHRO | Z | 2.6 | 1 | 2020-10-04 18:14:51 | 2020-10-06 11:13:00 | n |
| 158236 | IIEES SC | SBZV | Z | 44 | 1 | 2020-10-04 18:15:36 | 2020-10-06 11:13:00 | n |
| 158237 | IIEES SC | GLO | Z | 320 | 1 | 2020-10-04 18:15:36 | 2020-10-06 11:13:00 | n |
| 158238 | IIEES SC | KAGH | Z | 6.4 | 1 | 2020-10-04 18:16:21 | 2020-10-06 11:13:00 | n |
| 158239 | IIEES SC | TABS | Z | 4.7 | 1 | 2020-10-04 18:17:05 | 2020-10-06 11:13:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | MRVT | N | IS | I | 2020-10-04 18:14:29 | 0.1 | y | 44 | 175 | |||
| IIEES SC | MRVT | Z | IP | I | 2020-10-04 18:14:22 | -0.5 | y | 44 | 175 | |||
| IIEES SC | BJRD | Z | IP | I | 2020-10-04 18:14:36 | 0 | y | 122 | 109 | |||
| IIEES SC | ABGH | N | IS | I | 2020-10-04 18:15:08 | 0.2 | y | 189 | 217 | |||
| IIEES SC | ABGH | Z | IP | I | 2020-10-04 18:14:45 | -0.3 | y | 189 | 217 | |||
| IIEES SC | SHRO | Z | IP | I | 2020-10-04 18:14:51 | -0.7 | y | 233 | 181 | |||
| IIEES SC | SBZV | Z | IP | I | 2020-10-04 18:14:52 | 0.6 | y | 233 | 143 | |||
| IIEES SC | GLO | Z | IP | I | 2020-10-04 18:14:56 | 0.2 | y | 266 | 229 | |||
| IIEES SC | AKL | Z | IP | I | 2020-10-04 18:15:00 | 1 | y | 289 | 124 | |||
| IIEES SC | KAGH | Z | IP | I | 2020-10-04 18:15:08 | -1 | y | 366 | 110 | |||
| IIEES SC | TABS | Z | IP | I | 2020-10-04 18:15:25 | -0.2 | y | 500 | 169 | |||
